BC-1080W PIR camera module with recording and WLan


Special situations require special tasks. You cannot find a device from our assortment, which you can camouflage well at your site? Then you are in the same situation like some investigators. 1080p HD with WLan. Do you want to know more? Then continue reading!

Out of stock

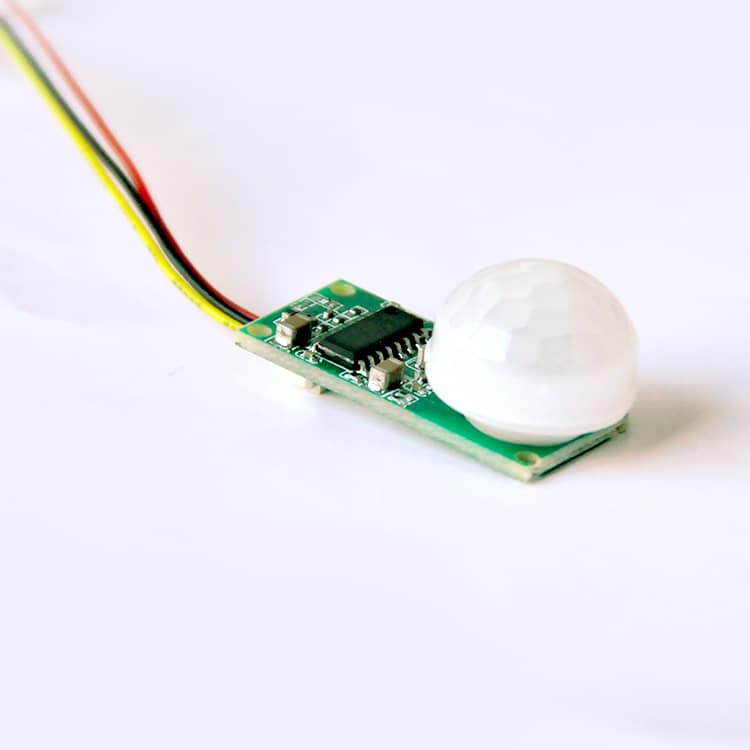

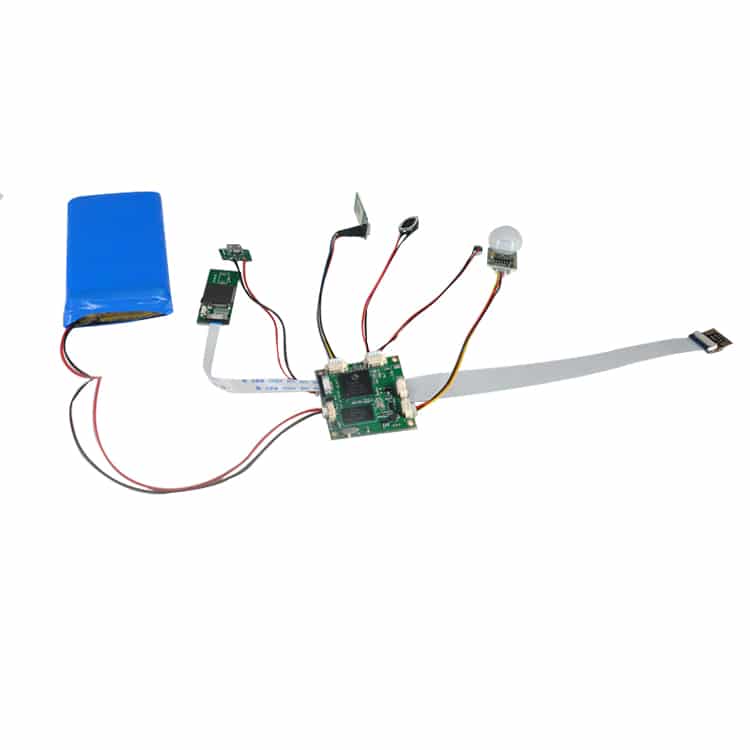

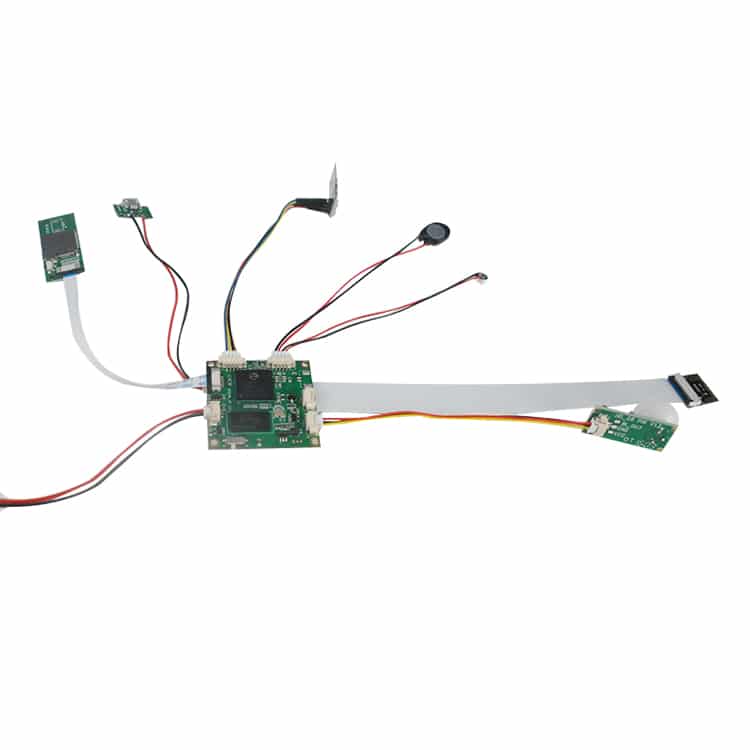

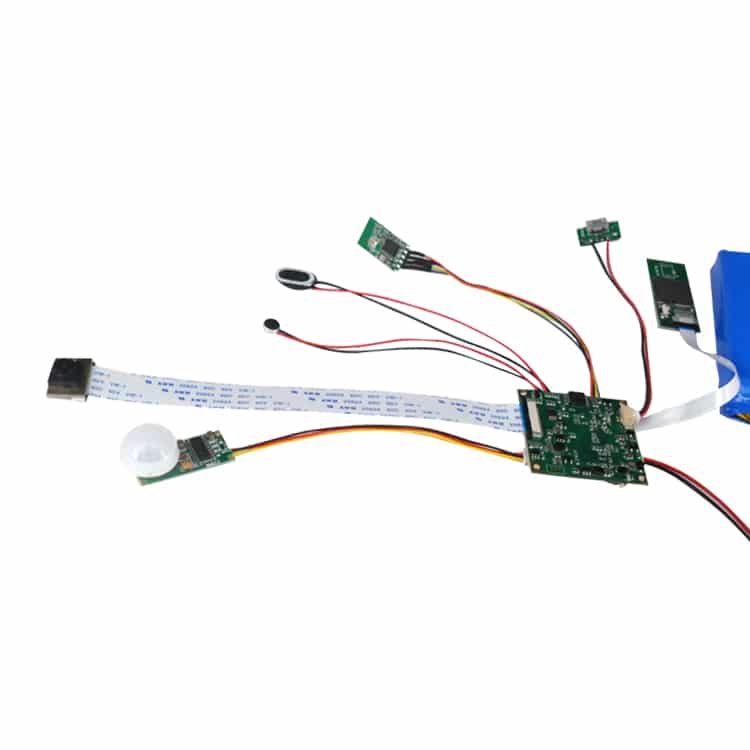

With this PIR camera module you are able to place a surveillance recorder into an object of your choice. With the module you get the sharpest videos in HD and a viewing angle of 50 degrees in the simplest way. The sound is also recorded. The device is suitable for microSD cards up to 64GB. So you have all the video data on the card during long absence and you read it out via a video player. This PIR module remains much longer online than a conventional module with motion detection!
Via the free app for iOS or Android you can control the device from anywhere or watch live what is happening in the surrounding.
This is a top device in perfectly harmless camouflage according to your personal choice.

Technical parameters:

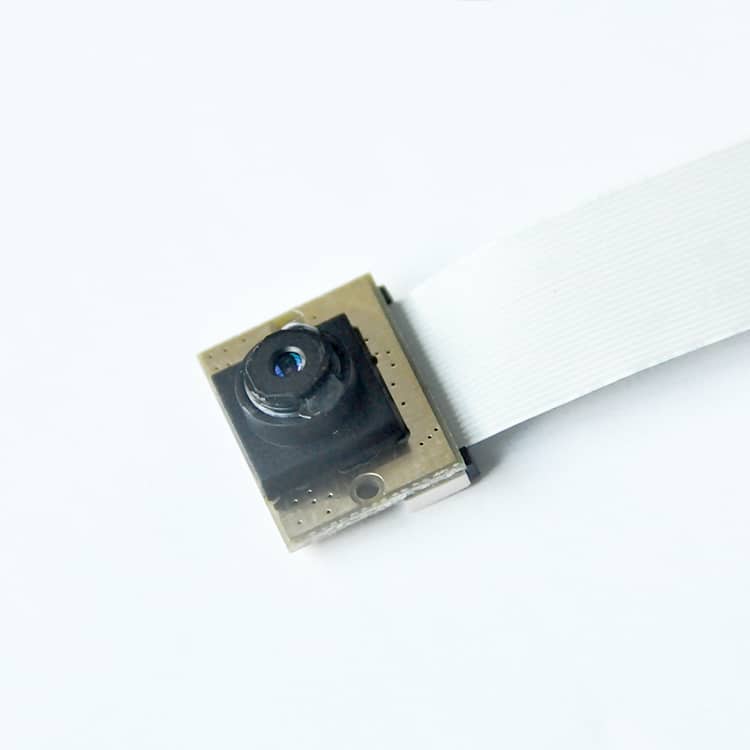

Video Image Sensor 3.0 HD Megapixel
Video compression H.264 high profile, JPEG snapshot
Signal system NTSC/Pal selectable
Lens 0.6mm
Min. Illumination 1.0 Lux
Frame rate 30fps NTSC, 25fps Pal
Resolution HD 1920x1080P
Video adjustment Brightness, contrast, & saturation
Video bit rate 32 Kbps ~ 2.5 Mbps
IR cut filter Yes
Audio Audio compression G711
Microphone Built-in for audio monitoring
Recording & Playback Recording mode Motion detection, manual
Storage Record to local SD (up to 64GB, not included); record to remote PC; video or snapshot
Playback Playback via SD reader; real time remote playback
Alarm Motion detection VMD (video motion detection)

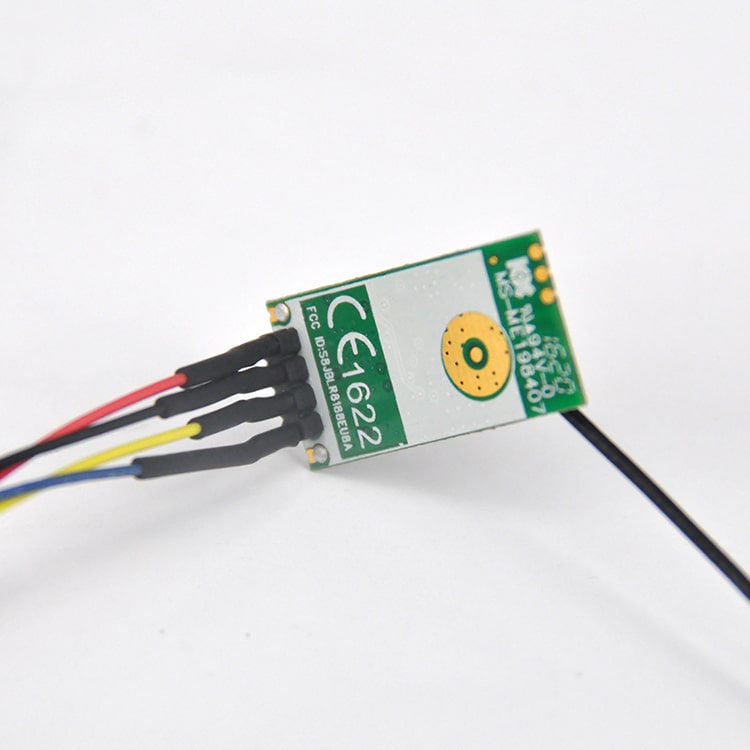

Wireless network Wi-Fi 802.11 b/g/n
Online users 10 users at the same time
Mobile surveillance iPhone, Android
CPU & System Operating system Embedded Linux OS

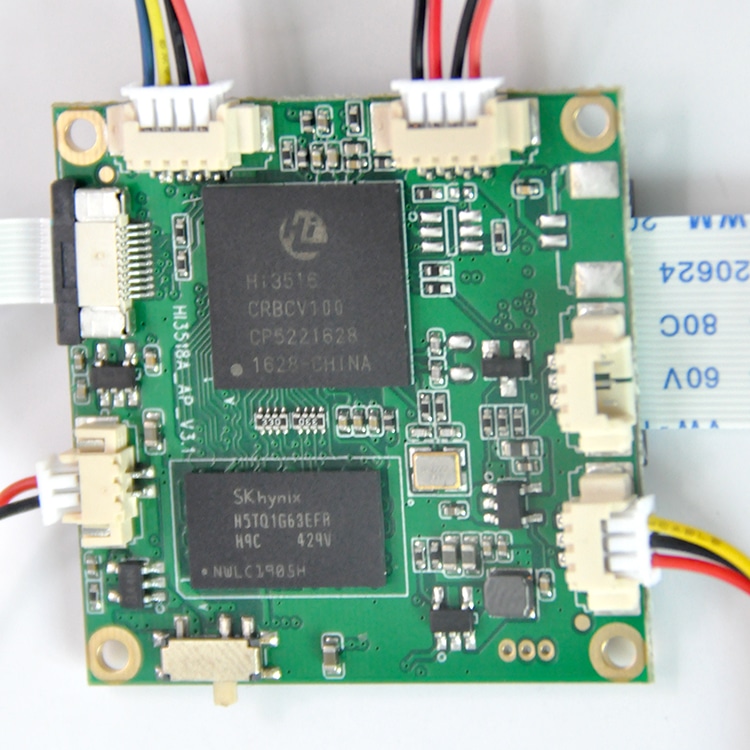

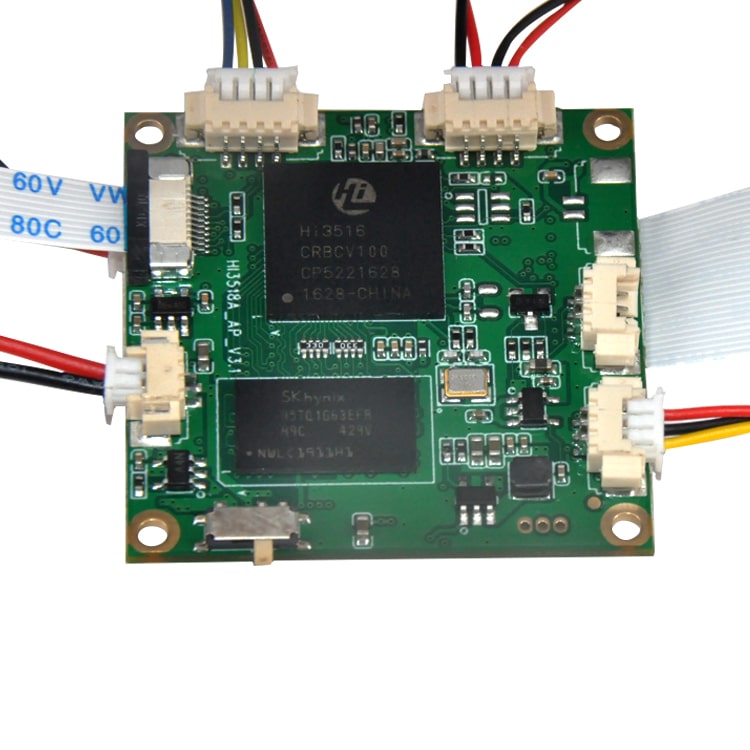

Micro processor 32Bit RISC embedded processor
System requirement Microsoft Win98 SE, ME, 2000, XP, Vista, or Windows 7
Humidity 95% RH

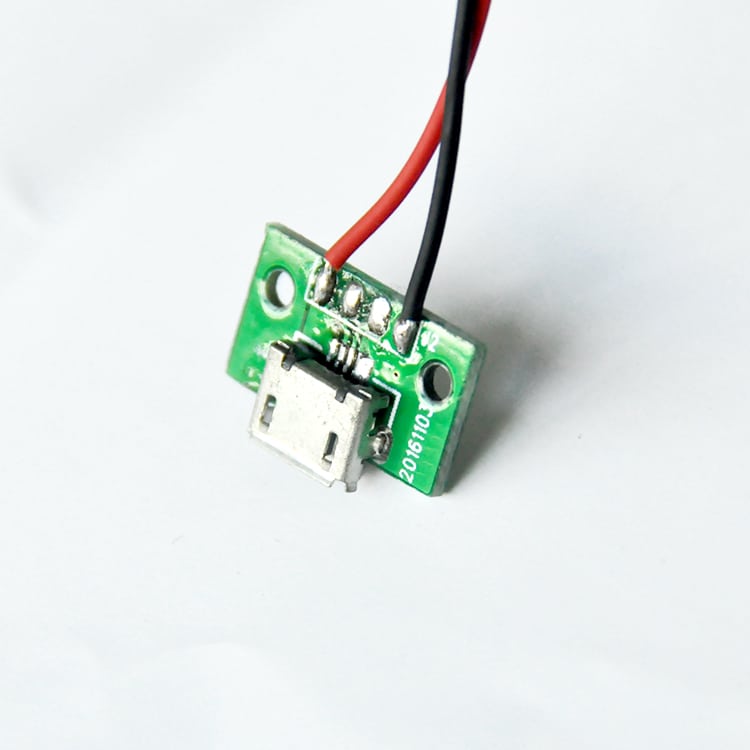

Power DC5V 2A or USB5V 2A
