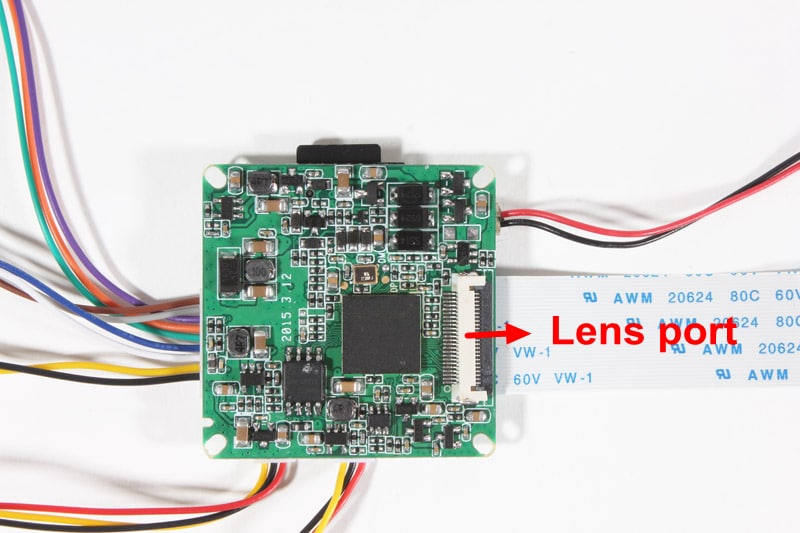

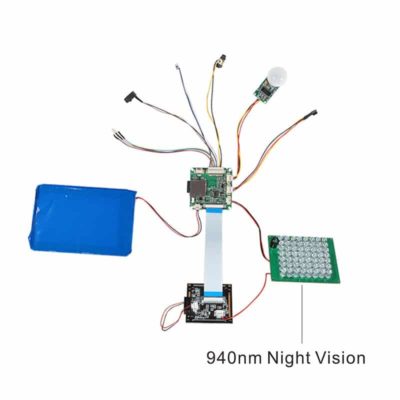

BC-1080 PIR camera module with recording


Special situations require special tasks. You cannot find a device from our assortment, which you can camouflage well at your site? Then you are in the same situation like some investigators. 1080p HD with recording. Do you want to know more? Then continue reading!

18 in stock

SKU: VCC-0018 Categories: ,

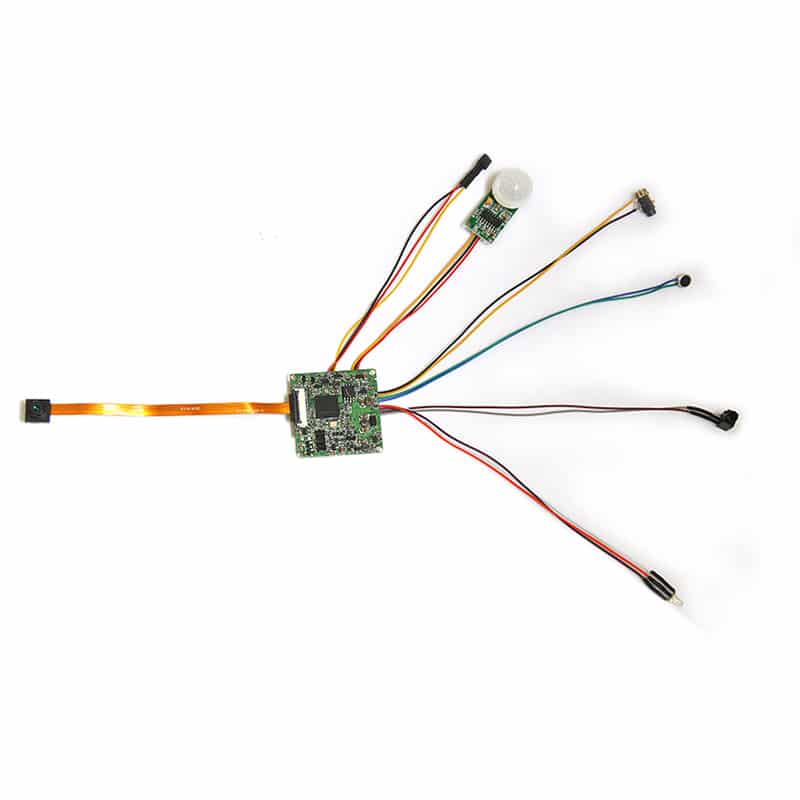

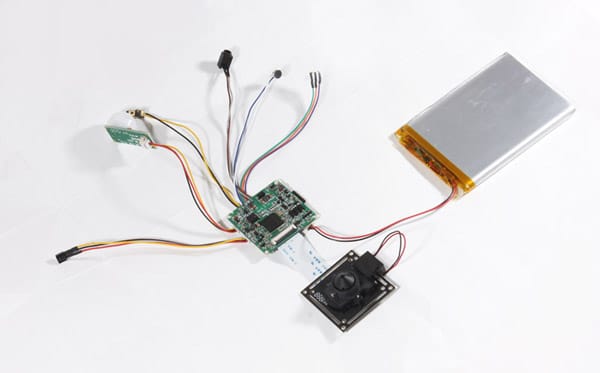

With this PIR camera module you are able to place a surveillance recorder into an object of your choice. With the module you get the sharpest videos in HD and a viewing angle of 65 degrees in the simplest way. The sound is also recorded. The device is suitable for microSD cards up to 64GB. So you have all the video data on the card during long absence and you read it out via a video player. This PIR module remains much longer online than a conventional module with motion detection!

Technical parameters:

Main chipset STK4584
Image Sensor 1/3 inch 2.0 Megapixel OV2710
Effective Pixels Full HD(1920x1080p).HD(1280x720P),D1(720×480)
Video Compression H.264
Recording Video Format .AVI
Motion Detection Distance 8 meters
PIR Motion Distance 8 meters
PIR Standby Time(4200ma battery) Max. 15 days
PIR Motion Boots Up In 2 seconds
Minimum Illumination 0.1Lux
Lens Type Pinhole
Viewing Angle 65 degree
Recording Mode PIR Motion/Motion Detect/Manual Record
Focal Distance 3.7mm
Memory Slot Micro SD (Supports up to 64GB, not included)
Microphone Built-in
File Overwrite Yes

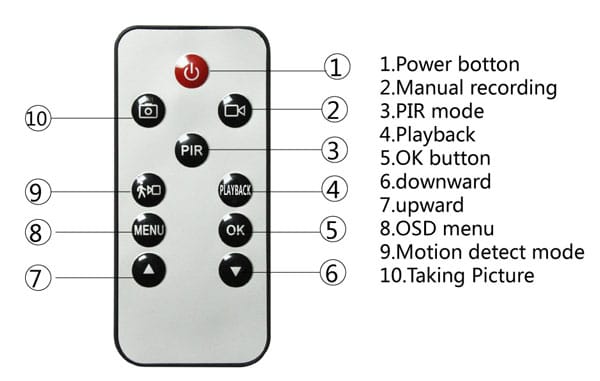

RC (Remote Control) Up to 10m, CR2025 3V Lithium Battery
Power consumption Max 390mA 5V
Rechargeable Battery Capacity 4200mAh
Charging while Recording Yes
Operating temperature -10 ~ 50 °C (+14 ~ 122 °F)
Dimensions 38mmx38mm
Operation Humidity 20%-80% RH
Power DC 5V 1A
